STANDARD DAMPERS.
The perfect solution for all your loading cases.
Our standard dampers offer you a fast and effective solution to suit the requirements of your loading case. The standard dampers are readily and quickly available in various designs and feature precisely defined absorption properties.
INFINITE DAMPING POSSIBILITIES.
TecsPak® standard dampers: available ex stock.
There are seven different types of TecsPak® standard damper: GBA, GBA-S, GBR, GBR-H, TCB, RTB and HRB. The different type designations refer to different loading cases. The dampers can be subject to both axial and radial loads, with load absorption ranging from 0.2 kN to 980 kN, depending on the type. They can absorb up to an impressive 12,700 Nm of energy per stroke. Each type has different absorption properties, offering progressive, (almost) linear and digressive force curves.

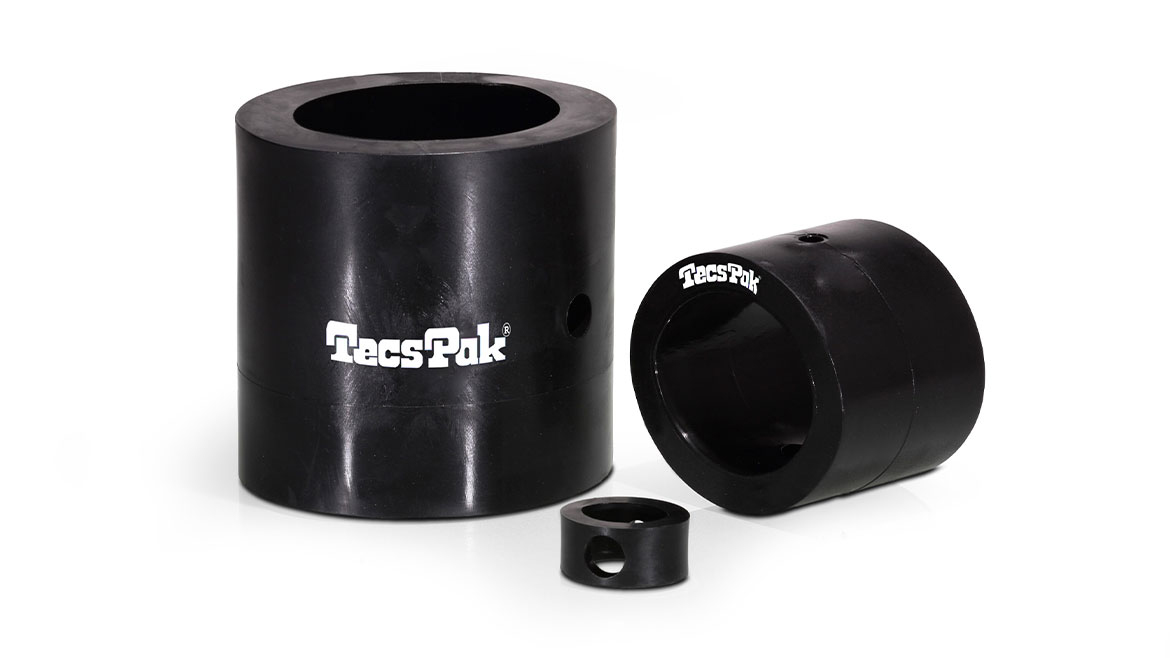

GBR-Series.
The GBR dampers are radial acting. They demonstrate a gentle, linear progressive characteristic curve with a long stroke. The GBR-Series consists of 14 different sizes with:
Dynamic load absorption:
300 – 7,500 N
Energy absorption:
1.8 – 146 Nm
Easy to fix in place—only one screw needed.
Please note:
All standard dampers can also be used as emergency stop bumpers.
- GBR-Series
Dampers
Height
[mm]External Ø
[mm]Length
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max. dyn
[N]GBR-1 24.6 28.4 13.2 8.1 38.4 1.8 300 GBR-1 L80 24.6 28.4 80 8.1 38.4 11 1,800 GBR-2 31.8 36.6 19.3 10.4 49.8 5.4 970 GBR-3 37.3 42.7 19.8 12.2 57.7 8.1 1,070 GBR-3 L80 37.3 42.7 80 12.2 57.7 33 4,270 GBR-4 43.7 49.5 34.5 9,4 68.1 8.4 1,050 GBR-5 55.1 62.0 42.2 11.9 87.1 17.3 1,800 GBR-5 L80 55.1 63 80 11.9 87.1 32 3,350 GBR-6 58.7 66.3 46.2 18.8 88.1 33.2 2,450 GBR-7 67.3 76.2 45.7 21.6 102.4 43.1 2,600 GBR-8 73.2 83.3 50.8 23.4 109.2 74.1 4,700 GBR-9 73.2 82.0 67.3 23.4 111 92.1 6,250 GBR-10 83.1 93.2 82.6 26.2 123.7 121.7 6,500 GBR-11 88,1 100,1 81.3 28.2 132.6 145.8 7,500
GBR-H-Series.
The GBR-H dampers are radial acting. They demonstrate a gentle, linear progressive characteristic curve with a long stroke. The GBR-H Series consists of 11 different sizes with:
Dynamic load absorption:
1,130 – 21,200 N
Energy absorption:
5.7 – 427 Nm
Easy to fix in place—only one screw needed.
Please note:
All standard dampers can also be used as emergency stop bumpers.
- GBR-H-Series
Dampers
Height
[mm]External Ø
[mm]Length
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max. dyn
[N]GBR-1H 23.1 29.0 13.2 8.1 38.4 5.7 1130 GBR-2H 29.7 38.6 19.1 10.4 49.8 18.2 3,100 GBR-3H 35.6 45.2 20.1 12.2 57.7 23.9 3,500 GBR-4H 41.7 51.6 34.0 9.4 68.1 20.4 2,300 GBR-5H 52.8 64.3 42.2 14.2 87.1 46 5,100 GBR-6H 55.9 67.8 45.7 18.8 88.1 98 6,750 GBR-7H 64.0 79.2 45.2 21.6 102.4 106 7,000 GBR-8H 68.6 86.1 50.8 23.4 109.2 206 13,600 GBR-9H 68.1 86.1 67.1 23.4 111 261 15,900 GBR-10H 76.5 94.5 81.5 26.2 123.7 342 18,200 GBR-11H 83.8 102.4 81.0 28.2 132.6 427 21,200
GBA-S-Series.
The GBA-S dampers are axial acting and are primarily used for shock loads. They demonstrate a gentle, digressive characteristic curve with an efficiency (energy absorption) of up to more than 50% in continuous operation. The GBA-S Series consists of 22 different sizes with:
Dynamic load absorption:
605 – 23,200 N
Energy absorption:
3 – 966 Nm
Easy to fix in place—only one screw needed.
Please note:
All standard dampers can also be used as emergency stop bumpers.
- GBA-S-Series
Dampers
Height
[mm]External Ø
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max. dyn
[N]GBA-098S 14.7 13.5 7.4 19.5 3 605 GBA-099S 18.5 17.1 10.2 24.5 6 880 GBA-101S 20.7 20.1 10.7 27.5 7 820 GBA-102S 27.7 25.9 14.5 37 15 1,420 GBA-103S 32.3 31.5 16.5 43.5 26 1,900 GBA-104S 36.1 35.1 18.3 48.5 36 2,500 GBA-105S 37.6 36.2 19.3 50.5 42 3,000 GBA-106S 41.4 40.6 21.6 55.1 63 4,300 GBA-107S 44.5 42.2 22.4 59.7 72 4,300 GBA-108S 48.5 47.8 24.6 64.5 91 4,800 GBA-109S 51.6 48.3 25.4 69.0 114 5,900 GBA-110S 55.4 53.6 26.9 73.5 158 7,300 GBA-111S 59.2 55.9 28.4 78.0 154 7,900 GBA-112S 62.2 59.4 31.8 82.5 169 7,200 GBA-113S 65.5 64.3 33.5 87.0 254 10,900 GBA-114S 68.8 65.3 35.6 91.5 272 10,300 GBA-115S 75.2 73.7 39.4 101.0 408 15,800 GBA-116S 79 77.5 41.4 105.5 459 17,000 GBA-117S 84.1 81.3 42.9 110.0 620 19,500 GBA-118S 85.3 83.6 41.9 115.0 635 22,500 GBA-119S 93 90.2 45.2 124 778 23,500 GBA-120S 109.5 107.2 53.3 147.0 966 23,200
GBA-Series.
The GBA dampers are axial acting and are primarily used for shock loads. They demonstrate a strongly digressive characteristic curve with an efficiency (energy absorption) of up to 65% in continuous operation and up to 75% in emergency stop applications. The GBA Series consists of 23 different sizes with:
Dynamic load absorption:
920 – 90,000 N
Energy absorption:
3 – 2,951 Nm
Easy to fix in place—only one screw needed
Please note:
All standard dampers can also be used as emergency stop bumpers.
- GBA-Series
Dampers
Height
[mm]Außen-Ø
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max. dyn
[N]GBA-A 10.9 11.9 6.1 15.3 3 920 GBA-C 15.7 17 9.9 22.8 9 1,700 GBA-E 18.8 20.1 9.9 25.7 16 2,750 GBA-1 19.3 21.3 10.7 27 21 3,350 GBA-2 25.7 28.2 13.7 36.5 46 5,400 GBA-3 30 33.3 17.0 43 86 8,300 GBA-4 33.3 37.3 18.3 48.0 112 10,300 GBA-5 34.8 39.4 18.5 50 130 9,800 GBA-6 37.8 43.2 21.6 54.5 165 14,000 GBA-7 41.1 45.7 22.4 59.0 173 13,400 GBA-8 45 49.8 24.6 64.0 223 14,600 GBA-9 47.2 52.8 25.1 68.5 334 22,400 GBA-10 51.3 57.2 27.9 72.5 302 19,200 GBA-11 54.4 60.5 30.2 77.5 361 21,900 GBA-12 57.4 64.5 31.8 82.0 468 27,300 GBA-13 60.5 68.6 33.5 86.5 524 29,900 GBA-14 64.5 71.4 35.6 91.0 559 30,500 GBA-15 69.1 78.7 39.4 100.1 831 40,000 GBA-16 73.9 81.8 40.6 105.0 921 40,000 GBA-17 76.2 85.1 42.9 109.0 1,043 48,000 GBA-18 80 88.9 43.9 114.0 1,249 50,000 GBA-19 85.6 97.3 48.5 123.0 1,555 59,000 GBA-20 101 115.8 55.9 146.0 2,951 90,000
TCB-SERIES.
The TCB dampers are axial acting and are primarily used for extremely high shock loads. Originally developed for damping in all types of crane systems, TCB dampers are now used in a variety of heavy-load applications. TCB dampers meet the OSHA and CMAA standards and demonstrate a gentle, progressive characteristic curve with an efficiency (energy absorption) of up to 35% in continuous operation and up to 75% in emergency stop applications. The TCB Series consists of 17 different sizes with:
Dynamic load absorption:
80,064 – 854,016 N
Energy absorption:
451 – 12,726 Nm
Please note:
Easy to fix in place—two or more screws needed.
- TCB-Series
Dampers
Height
[mm]External
Ø upper
part
[mm]External
Ø lower
part
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max.
dyn
[N]TCB-1B 79.3 61.7 63.5 17.5 88.9 451.1 80,064 TCB-2B 95.5 70.9 74.2 20.3 114.3 978.2 164,576 TCB-3B 95.5 79.8 84.8 20.3 127 1,936.1 364,736 TCB-4B 53.1 108 22.9 133.4 1,899.9 453,696 TCB-5B 67.8 88.4 19.1 124 1,640.9 498,176 TCB-6B 84.3 100.1 25.4 149.4 1,785.3 253,536 TCB-7B 57.2 87.6 17 133.4 1,207.5 315,808 TCB-8B 97.8 105.9 35.1 139.7 1,962.8 222,400 TCB-9B 111.5 142.0 149,1 50.8 190.5 8,329.6 822,880 TCB-10B 106.2 135.9 41.4 177.8 4,244.6 498,176 TCB-11B 129 115.8 31.8 187.5 3,704.5 489,280 TCB-12B 181.9 137.7 139,7 41.4 214.4 7,313.7 711,680 TCB-13B 114.3 137.2 25.4 215.9 6,335.5 911,840 TCB-14B 166.1 167.6 41.9 260.4 10,095.6 978,560 TCB-15B 223.5 152.4 152,4 47.8 241.3 7,262.9 600,480 TCB-16B 241.3 148.3 149,4 63.5 223.8 8,865.4 560,488 TCB-17B 252 177 177,8 54.1 279.4 12,726.2 854,016
RTB-SERIES.
The RTB dampers are radial acting. Due to their pipe-like structure, they primarily absorb surface shock loads along their entire length. They demonstrate a gentle, progressive characteristic curve with low final loads. The efficiency (energy absorption) reaches up to 31% during continuous operation. The RTB Series consists of six different sizes, each with 4 – 6 different lengths.
Dynamic load absorption:
7,500 – 217,700 N
Energy absorption:
102 – 7,700 Nm
Please note:
Easy to fix in place—two or more screws needed.
- RTB-Series
Dampers
Height
[mm]External Ø
[mm]Length
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max. dyn
[N]RTB 1-6 58.9 65.5 152.4 19.8 87.4 102 7,500 RTB 1-12 58.9 65.5 304.8 19.8 87.4 204 15,000 RTB 1-18 58.9 65.5 457.2 19.8 87.4 306 22,500 RTB 1-24 58.9 65.5 609.6 19.8 87.4 408 30,000 RTB 1-30 58.9 65.5 762 19.8 87.4 510 37,500 RTB 2-6 67.8 75.7 152.4 22.9 100.1 145 9,400 RTB 2-12 67.8 75.7 304.8 22.9 100.1 290 18,800 RTB 2-18 67.8 75.7 457.2 22.9 100.1 435 28,200 RTB 2-24 67.8 75.7 609.6 22.9 100.1 580 37,600 RTB 2-30 67.8 75.7 762 22.9 100.1 725 47,000 RTB 3-6 73.4 82.8 152.4 25.9 106.4 180 10,600 RTB 3-12 73.4 82.8 304.8 25.9 106.4 360 21,200 RTB 3-18 73.4 82.8 457.2 25.9 106.4 540 31,800 RTB 3-24 73.4 82.8 609.6 25.9 106.4 720 42,400 RTB 3-30 73.4 82.8 762 25.9 106.4 900 53,000 RTB 4-6 88.4 99.1 152.4 29 130.3 270 16,500 RTB 4-12 88.4 99.1 304.8 29 130.3 540 33,000 RTB 4-18 88.4 99.1 457.2 29 130.3 810 49,500 RTB 4-24 88.4 99.1 609.6 29 130.3 1,080 66,000 RTB 4-30 88.4 99.1 762 29 130.3 1,350 82,500 RTB 4-36 88.4 99.1 914.4 29 130.3 1,620 99,000 RTB 4-42 88.4 99.1 1066.8 29 130.3 1,890 115,500 RTB 5-6 127.3 142.8 152.4 45.2 190.5 600 20,500 RTB 5-12 127.3 142.8 304.8 45.2 190.5 1,200 41,000 RTB 5-18 127.3 142.8 457.2 45.2 190.5 1,800 61,400 RTB 5-24 127.3 142.8 609.6 45.2 190.5 2,400 81,600 RTB 5-30 127.3 142.8 762 45.2 190.5 3,000 102,300 RTB 5-36 127.3 142.8 914.4 45.2 190.5 3,600 122,400 RTB 5-42 127.3 142.8 1066.8 45.2 190.5 4,200 143,500 RTB 6-6 164.8 187.5 152.4 62 244.6 1,100 31,100 RTB 6-12 164.8 187.5 304.8 62 244.6 2,200 62,200 RTB 6-18 164.8 187.5 457.2 62 244.6 3,300 93,300 RTB 6-24 164.8 187.5 609.6 62 244.6 4,400 124,400 RTB 6-30 164.8 187.5 762 62 244.6 5,500 155,500 RTB 6-36 164.8 187.5 914.4 62 244.6 6,600 186,600 RTB 6-42 164.8 187.5 1066.8 62 244.6 7,700 217,700
HRB-SERIES.
The HRB dampers are radial acting. HRB dampers absorb extremely high shock loads relative to their size. They demonstrate a gentle, progressive characteristic curve. The efficiency (energy absorption) reaches up to 58% during continuous operation. The HRB Series consists of 20 different sizes with:
Dynamic load absorption:
78,800 – 812,900 N
Energy absorption:
405 – 8,457 Nm
Please note:
Easy to fix in place—only two screws needed.
- HRB-Serie
Dampers
Height
[mm]External Ø
[mm]Length
[mm]Height
(compressed)
[mm]External Ø
(compressed)
[mm]Energy
absorption
[Nm]Load
max.
dyn
[N]HRB-1540 33,8 41,7 148,3 19,1 58,7 405 78.800 HRB-2540 47,5 56,6 148,8 25,7 79,3 1.194 150.800 HRB-3540 59,2 72,1 149,4 32,8 98 1.700 179.600 HRB-4540 71,4 84,8 149,6 37,9 110,7 2.526 210.300 HRB-5540 81,5 96,5 150,6 45,7 131,1 2.821 219.900 HRB-1640 32,3 46,7 149,9 15,2 69,9 850 154.700 HRB-2640 45,5 62,5 152,9 20,8 91,7 2.061 278.000 HRB-3640 57,7 78,7 154,7 26,4 112,3 2.975 324.200 HRB-4640 68,8 90,4 155,2 31,2 128 7.738 344.400 HRB-5640 80,8 102,4 156 36,6 147,3 4.697 364.100 HRB-1555 31,2 46,5 150,4 19,1 57,9 857 190.100 HRB-2555 40,4 62 152,9 24,6 77,2 2.940 304.600 HRB-3555 53,6 79,3 153,4 32,8 98 2.794 359.500 HRB-4555 63,5 93 154,9 39,1 115,3 3.421 376.000 HRB-5555 72,1 104,7 156 43,7 126,2 5.641 531.400 HRB-1655 29,2 51,6 152,7 15,2 69,3 1.634 374.300 HRB-2655 40,6 62,2 152,1 21,3 94,2 2.940 495.600 HRB-3655 47,8 88,9 161,8 26,2 112,3 4.438 607.200 HRB-4655 62,5 96,8 158,5 31,2 128,8 7.738 731.700 HRB-5655 66 116,6 166,4 35,3 142,5 8.457 812.90
